Specifications
| CODE | 12246 | MODEL | DJ72-2 |
| AMPS | 4.7 | P1 | P2 | 0.93 | 0.75 |

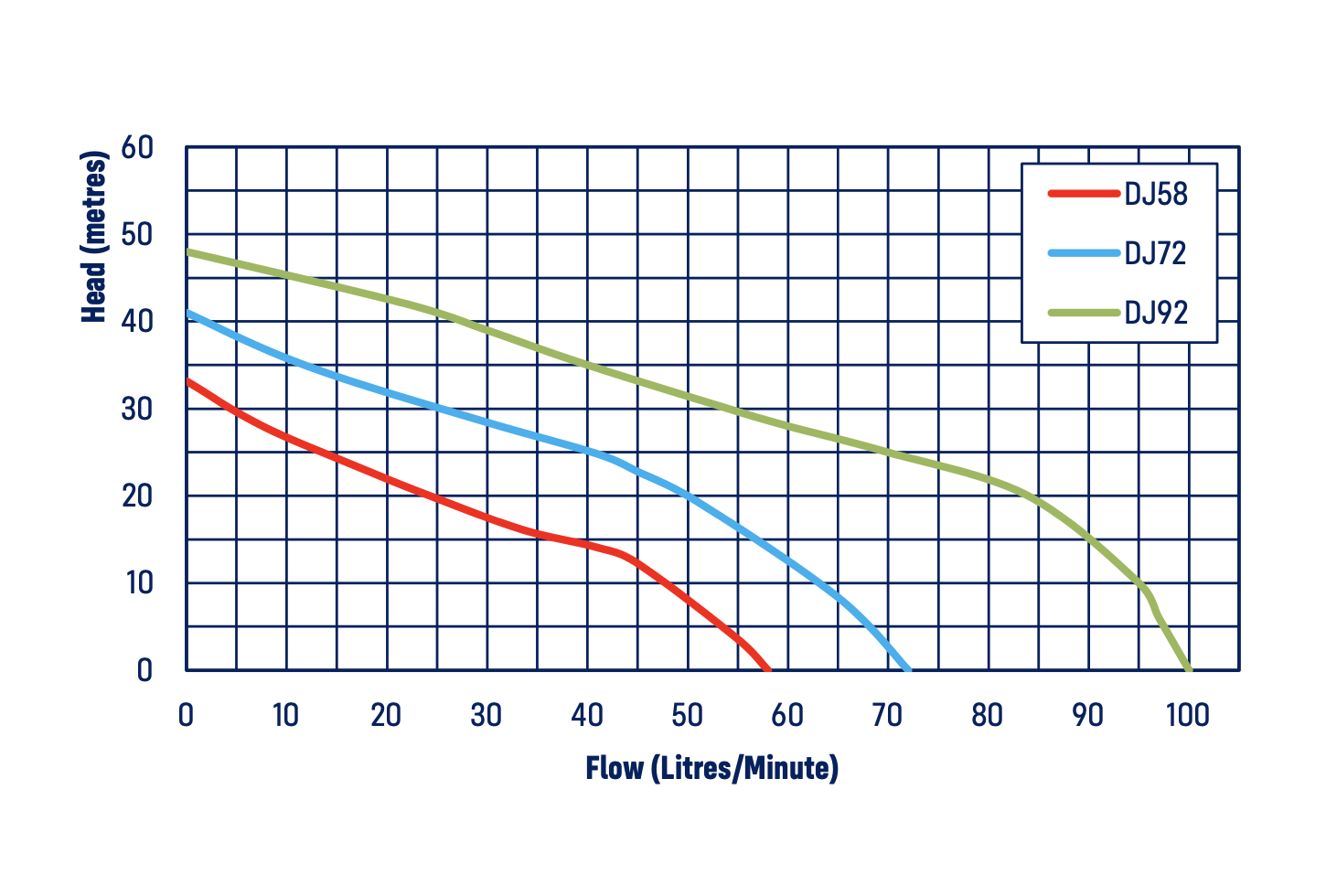

| RATED FLOW | 40 L/min | RATED HEAD | 25m |
| MAX FLOW | 71 L/min | MAX HEAD | 40m |
| SUCTION LIFT | 8 | NO. OF TAPS | 5 – 8 |
| CABLE LENGTH | 1.5m | INLET | OUTLET | 25mm |
| SIZE L x W x H (mm) | 410 x 190 x 350 |

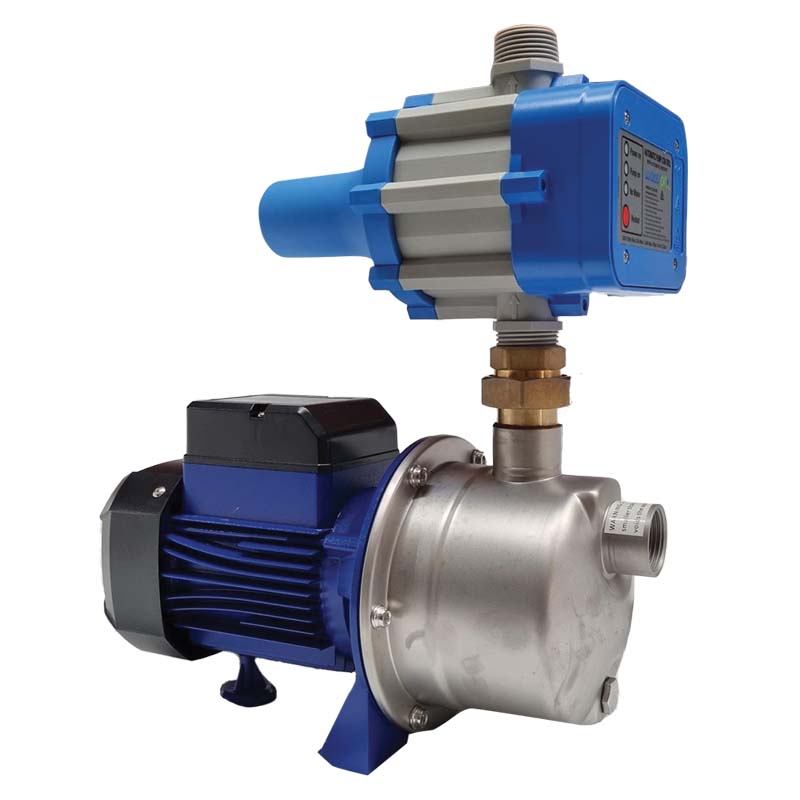

DJ72 Waterpro Jet Pressure Pump
These value-packed jet pumps are suitable for the supply of water to the house and garden. Quiet running reliable jet pump is suitable for suction lift for underground tanks or tanks at differing levels.
Features & Benefits
Reliable, vibration free operation
Automatic pressure controller with weatherproof cable connection, gives consistent pressure supply with run-dry protection
Certified to AS/NZS4020 for use with potable water
Self priming function
Automatic restart function on pressure controller, automatically checks for water every 24 hours after a run-dry event
Construction
Noryl jet, diffuser and impeller
Grade 304 stainless steel casing & shaft
Carbon/ceramic mechanical seals for reliability
Quick plug pressure controller
Thermal overload protection
Ingress Protection IP44
Insulation Class B
Applications
Domestic water supply and irrigation
Water storage tank pump set
Water transfer
Pressure boosting
Garden irrigation
Sheds, small workshops
SUITABLE FOR
Average lowset house or two storey unit, toilets & laundry (DJ58: 1 bathroom, DJ72: 3 bathrooms MAX)
