Specifications
| CODE | 23020 | MODEL | QGWP160-300 |
| PUMP MODEL | RVS155VF | AMPS | 1.5 |
| P1 | P2 | 0.35 | 0.18 | OUTLET SIZE | 1 1/4″ | 32mm |
| MAX FLOW | 155 L/min | MAX HEAD | 7m |
| CABLE LENGTH | 10m | PIT SIZE | 300 SQ. |
| PIT SIZE L WxH (mm) | 360 x 360 x 450 | CAPACITY | 40L |

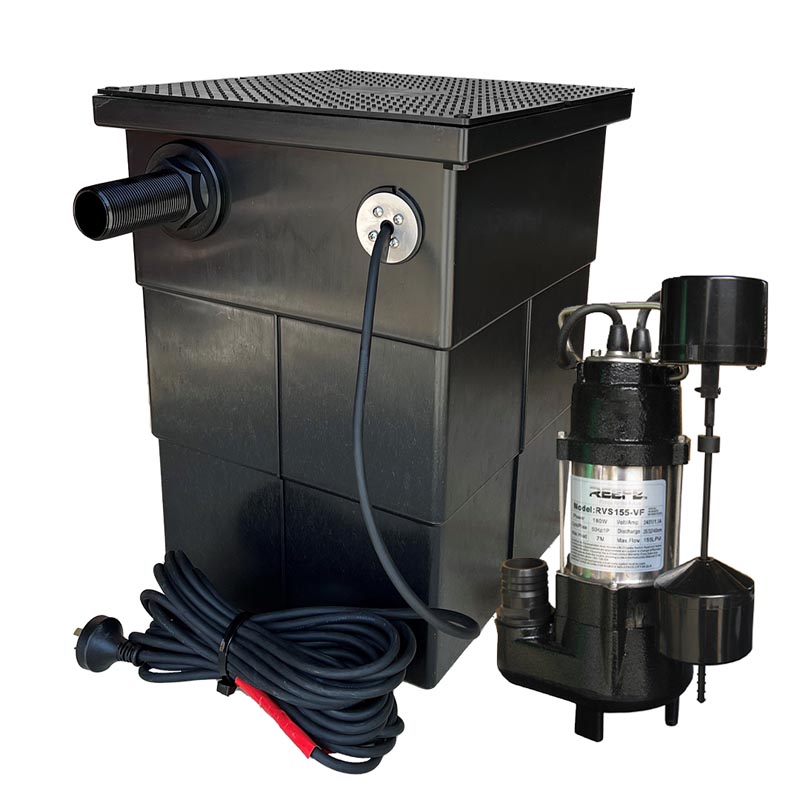

QubeX Mini 3 QGWP160-300 Greywater Pump & Pit System – RVS155VF Sullage Pump
Light duty Polyethylene collection pit is ideal for confined spaces, such as under bench pump out systems & small grey water waste pits in restricted areas. The most common use is for temporary greywater collection applications. These systems are recommended to be installed in Domestic and Residential applications only.
Construction
300 Pit = 40L
450 Pit = 85L
600 Pit = 180L
Class A Galvanised steel grate
Inlet to be installed on site
1 1/2″ | 40mm MBSP outlet excluding RVS155VF Pump Pits
RVS155VF: 1 1/4″ | 32mm MBSP supplied with 32-40mm poly bush
Assembled using submersible pumps
Applications
Pumping Greywater
Building sites and other temporary applications
Screened wastewater removal
