Specifications
| CODE | 19771 | MODEL | RSMP35 |
| AMPS | 3.7 | P2 | 0.60 |
| RATED FLOW | 30 L/min | RATED HEAD | 28m |
| MAXIMUM FLOW | 105 L/min | MAXIMUM HEAD | 35m |
| NO. OF TAPS | 4 – 6 | INLET|OUTLET | 25mm |
| CABLE LENGTH | 10m | SIZE (mm) L x W x H | 150x150x150 |

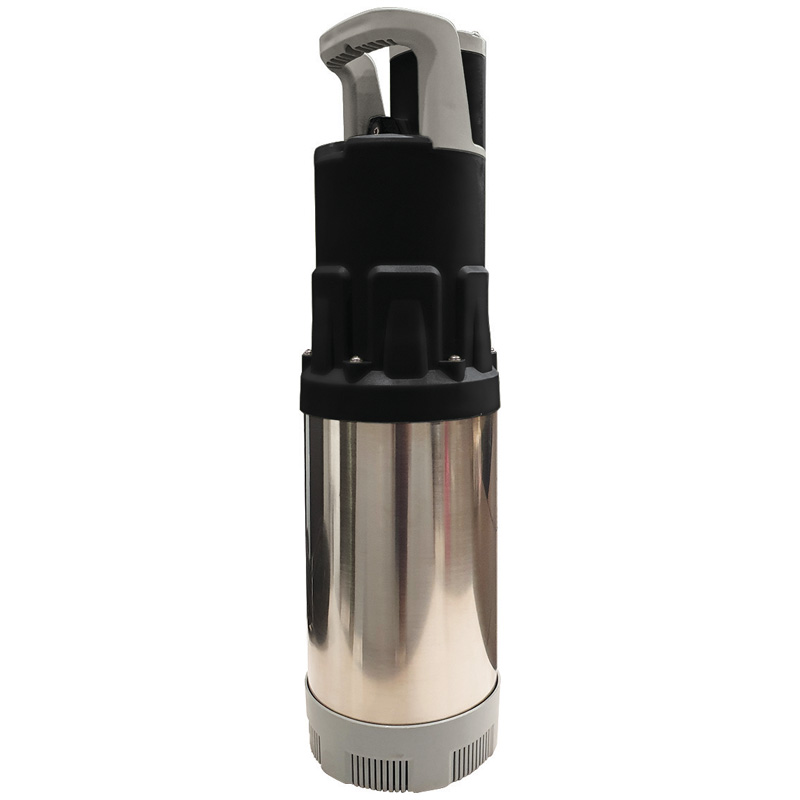

RSMP35 M/Stage Submersible Pressure Pump w Integrated PC
With an integral pressure controller, the RSMP range of submersible multistage pressure pumps offer many benefits over standard submersible pumps with separate pressure controllers, including quicker install time with less parts, and increased reliability.
Features & Benefits
Integrated Pressure Controller
Integrated run-dry protection
Integrated leak-detection function
Auto restart function
Integrated Checkvalve
Compact design
Water-cooled motor
Thermal overload protection
Corrosion resistant
Electrical Safety Approval to AS/NZS60335.2.41
Certified to AS/NZS4020 for use with potable water
Construction
Grade 304 Stainless Steel Outer Casing
PPO Impellers & diffusers
Stainless steel Grade 304 Motor Shaft
Plastic Pump Base and Discharge Body
Brass Threaded Outlet
Ingress Protection IP68
Insulation Class F
Applications
Clean Water Transfer
Household Supply
Rainwater Tanks
Industrial Cleaning
Commercial Laundries
Rain to Mains Backup Systems
