Specifications
| CODE | 12277 | MODEL | PRJ052 |
| AMPS | 2.5 | WATTS | 370 |
| RATED FLOW | 25 L/min | RATED HEAD | 20m |
| MAXIMUM FLOW | 55 L/min | MAXIMUM HEAD | 33m |
| SUCTION LIFT | 8m | NO. OF TAPS | 2 – 4 |
| INLET (mm) | 25 FBSP | OUTLET (mm) | 25 MBSP |
| CABLE LENGTH | 3m | SIZE (mm) | 370 x 190 x 380 |

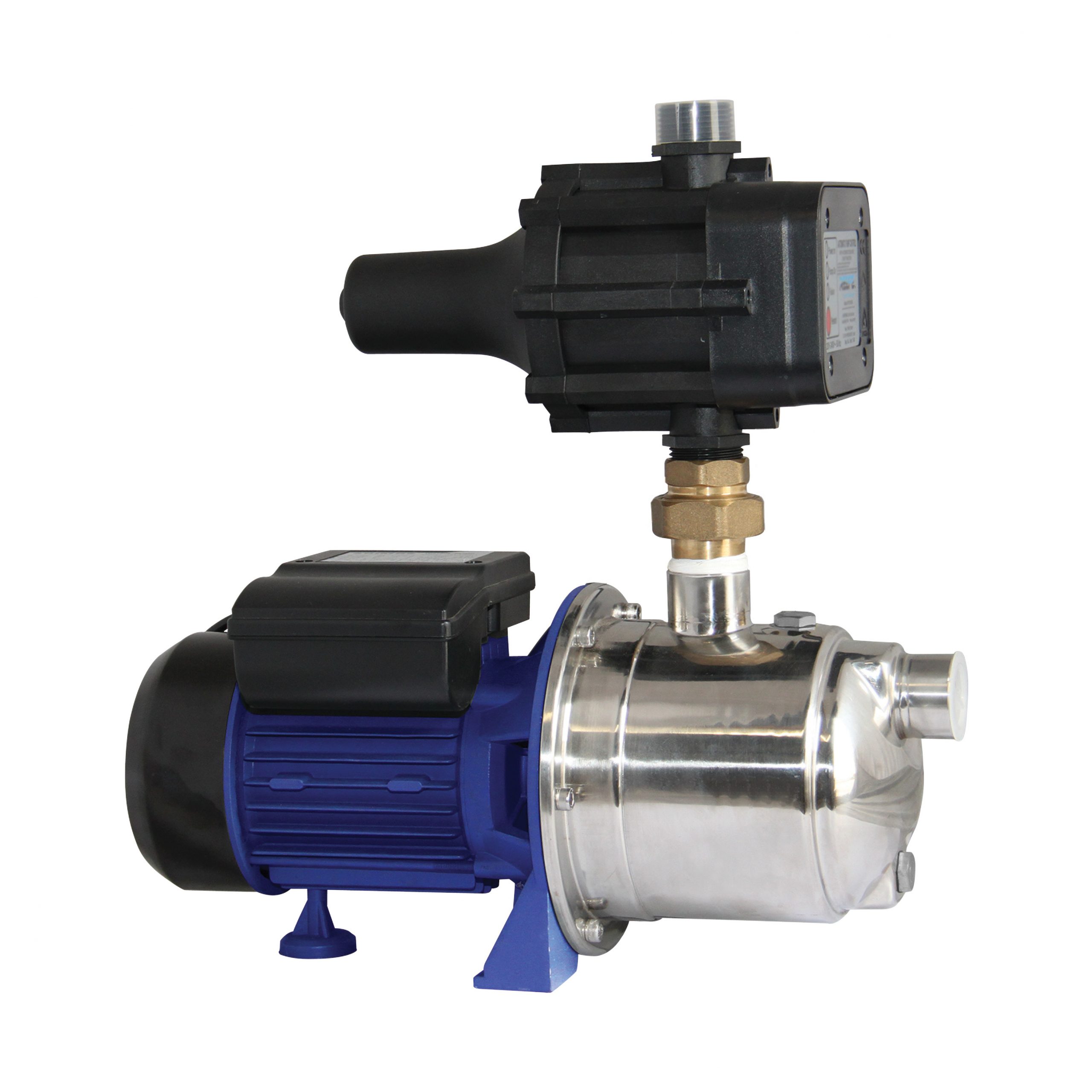

PRJ052 Premium Jet Pressure Pump
This economical pressure pump is designed for the supply of water to the garden or a small house. It incorporates an automatic pressure controller, stainless steel casing and shaft, Noryl Impeller, Jet and Venturi for safety and reliability. Suitable for suction lift from underground tanks or tanks at differing levels.
Features & Benefits
Reliable, efficient power-saving performance
Automatic pressure controller giving consistent pressure supply
Run-dry protection and thermal overload protection to protect the pump
Special function on the pressure controller that automatically checks for water every 24 hours after a run dry event
Tested to AS4020 for potable water
Construction
Stainless steel casing and shaft
Carbon/ceramic mechanical seal for reliability
IP44 motor with B class insulation – install under a cover
Quick plug pressure controller connection
Stainless steel housing
Noryl jet and venturi, diffuser, & impeller
Brass barrel union
RPC15ADSQP Pressure Controller (code: 8744.QP)
Applications
Clean water transfer
Small house (1 bathroom) or cabin supply
Garden irrigation
Suction lift applications
Pressure boosting
Laundry and garden taps
