Specifications
| CODE | 4166 | MODEL | RSFB1600 |
| VOLTS | 18 | WATTS | 2 x 20 |
| BATTERY | 12 – 24v / 7.0Ah | MAXIMUM FLOW | 1560 L/min |
| MAXIMUM HEAD | 3.2m | NO. OF PANELS | 2 |
| CABLE LENGTH | 5m | OUTLET | 1/2″ MBSP |
| PUMP SIZE LxWxH (mm) | 130 x 85 x 72 | SOLAR PANEL SIZE WxH (mm) | 515 x 345 |
RSFB1600 Solar Fountain Pump with Battery Backup
World - class solar technology s combined with high quality brushless pumps and quality batteries in weatherproof cases, to produce this great range. Manufactured to our design and quality requirements with solar anels superior technology. The fountain set enclosed will suit most applications. Kit comes complete with battery back-up for night-time operation and overcast conditions. "Max Head" measurement is the maximum lift height in full sun.
Features & Benefits
Salt water compatible
Flow Adjustment
Threaded outlet
5m cable on pump and 5m cable from battery to panel
Battery back-up time 2.5 to 7 Hours
Extension cable available – (Refer Page 196)
Adjustable settings on the battery adjusts the voltage output which determines the run time
Run dry protection on all models
Timer function – On 15min, Off 45min to maximise sun time at night
Construction

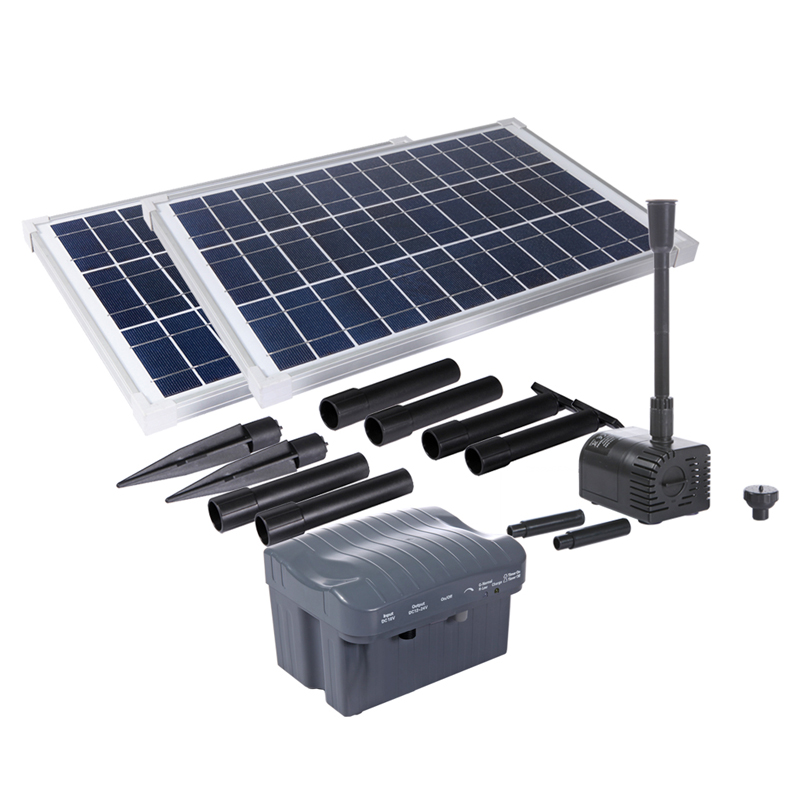

KIT INCLUDES
Solar panel & support spike
Pump with cable
Fountain nozzles
Battery back-up
Float pad, spare impeller, shaft & o-ring
Applications
Birdbaths
Waterfalls
Ponds
Statues
Fountains
Saltwater
Not suitable for Bio Filters
