Specifications
| CODE | 8317 | MODEL | RSW090 |
| AMPS | 4.4 | WATTS | 550 |
| RATED FLOW | 40 L/min | RATED HEAD | 30m |
| MAXIMUM FLOW | 70 L/min | MAXIMUM HEAD | 48m |
| SUCTION LIFT | 8 | NO. OF TAPS | 4 – 7 |
| INLET (mm) | 25 | OUTLET (mm) | 25 |
| CABLE LENGTH | SIZE (mm) | 460 x 230 x 235 |

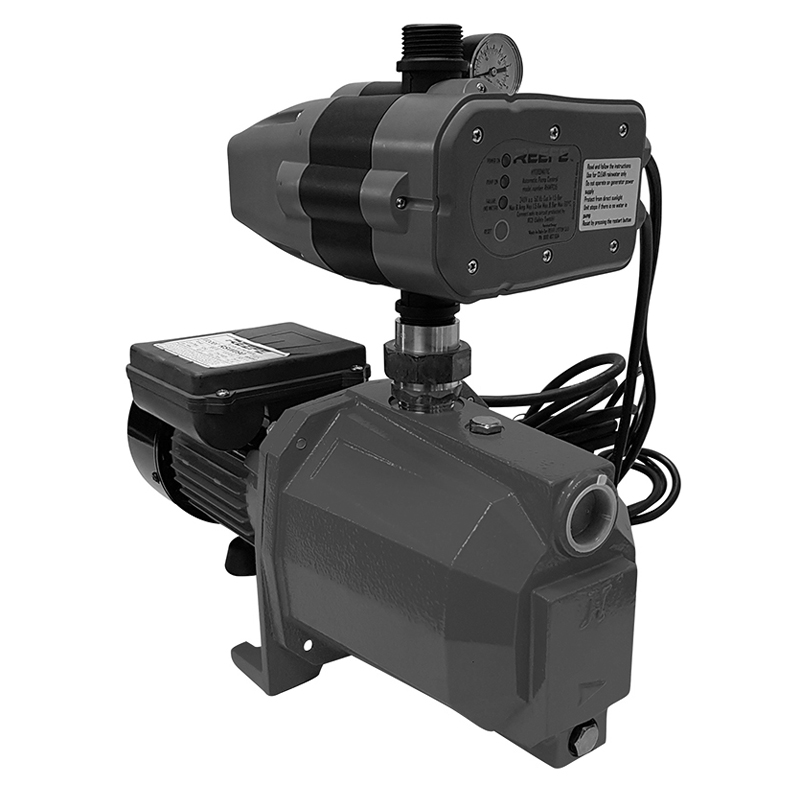

RSW090 Shallow Well Jet Pump – SUPERSEDED
This product has been superseded by the REEFE RSWE60.T Shallow Well Jet Pump Only - click here!
Features & Benefits
Suction lift up to 8m (with foot valve)
Easy mount & installation
Pre-wired electrical connections when ordered with pressure control options
Low wattage
Construction
Stainless steel shaft
Thermal protector to prevent motor burn-out
Noryl impeller, jet and venturi
High grade cast iron casting
Industrial grade motor with IP54 rating and insulation class B
RSW090 has 1m cable with 3 pin plug and can be used as transfer pump
Applications
Clean water transfer
Surface mounted shallow well jet pump
Household supply
Garden sprinklers and irrigation
Stock watering
