Specifications
| CODE | 3152 | MODEL | EMS48 |
| AMPS | 8.3 | KW | 1.3 |
| RATED FLOW | 100 L/min | RATED HEAD | 39m |
| MAXIMUM FLOW | 170 L/min | MAXIMUM HEAD | 49.5m |
| SUCTION LIFT | NO. OF TAPS | ||
| INLET (mm) | 32 FBSP | OUTLET (mm) | 25 FBSP |
| CABLE LENGTH | SIZE (mm) | 411 x 164 x 211 |

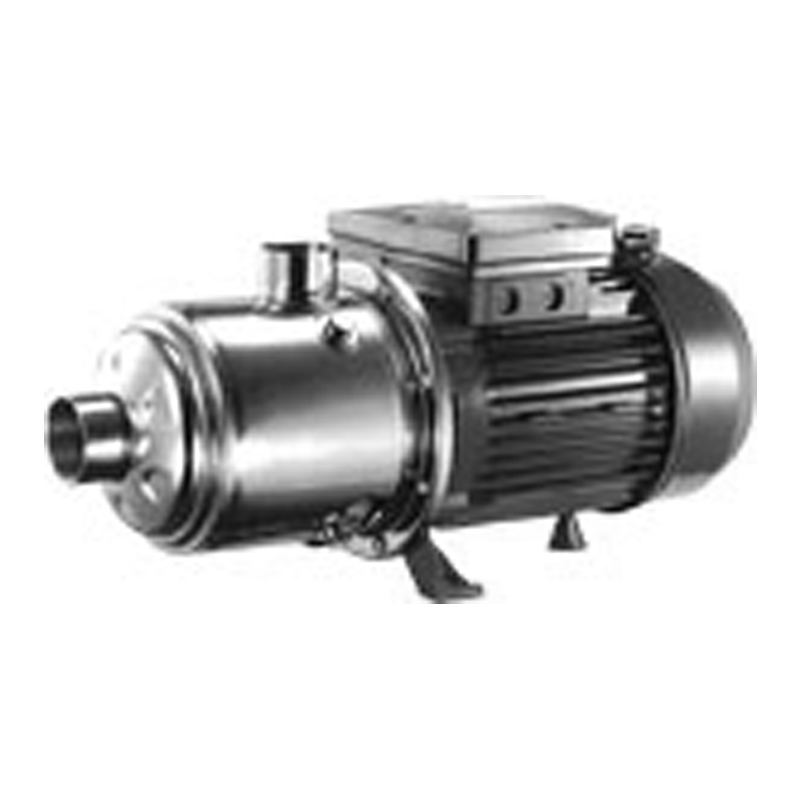

EMS48 Stainless Steel Multistage Pump SUPERSEDED
This product has been superseded by the RHMS50-175.T Multistage Pressure
Pump Only - click here!
Features & Benefits
Made in Italy
Precision engineered for reliability and high performance
Close coupled and compact; quiet operation
Excellent efficiency that results in a reduction of running cost and power
Intermediate shaft guiding stage for concentricity of rotation, improved quietness and durability
Over dimensional bearings for longer life
Maximum liquid temperatures -5°C – +35°C
3 year replacement warranty
Continuous duty motor
Construction
Pump body, mechanical seal disc holder – stainless steel 304
Pump body gasket: HNBR
Pump shaft – stainless steel grade 303
Impellers & diffusers – noryl
Mechanical seal – carbon/ceramic
Motor frame: aluminom alloy
Applications
Water treatment
Agricultural and Industrial applications
Irrigation systems & rainwater tanks
Washing systems
Pressure boosting
