Specifications
| CODE | 21897 | MODEL | VSC1-7.5 |
| INPUT VOLTAGE | 1-/240V | kW | 1.5 |
| OUTPUT VOLTAGE | 1-/240V | MAX AMPS | 7.5 |
| RANGE OF SET PRESSURE | 0.5-8bar | MAX FLOW | 133 L/min |
| INLET | OUTLET | 25mm | WEIGHT | 2.8kg |

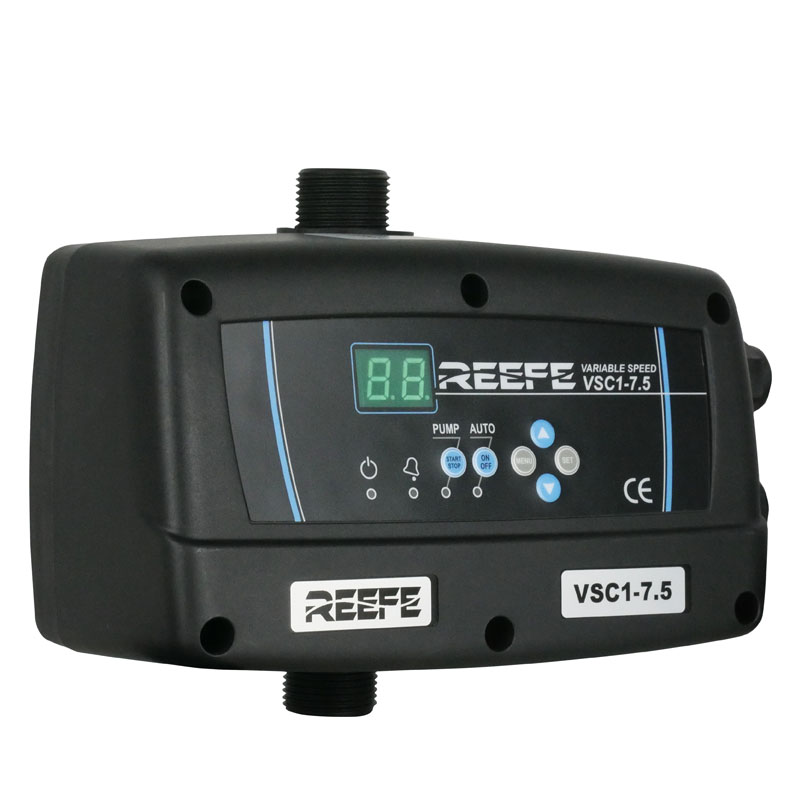

VSC1-7.5 Variable Speed Drive
The REEFE variable speed drives feature superior pressure sensing technology to maintain constant pressure and motor speed during pump operation, with the added advantage of power savings. Easy to operate and mount on pump. Water flows through hydraulic connections.
Features & Benefits
Power savings through intelligent control
Automatic operation eliminating the need for manual resets/operation
Integrated protection system to prevent dry-running operation
Compact design and easy to install
Supplied with Quick Plug connections and 1.5m power cable
Ingress Protection IP55
Max liquid temperature 40°C
Max ambient temperature 50°C
Certified to AS/NZS4020 for use with potable water
Construction
Applications
Intelligent, automatic, constant pressure operation of pressure pumps for a multiple of situations, domestic, commercial & industrial
Hotels, Amenities, Restaurants
