Specifications
| CODE | 9581 | MODEL | RPC30110 |
| DESCRIPTION | Pump Controller BMS Module (Dual and Single available – please specify) | ||
RPC30110 Pump Controller BMS Module (Dual and Single available – please specify)

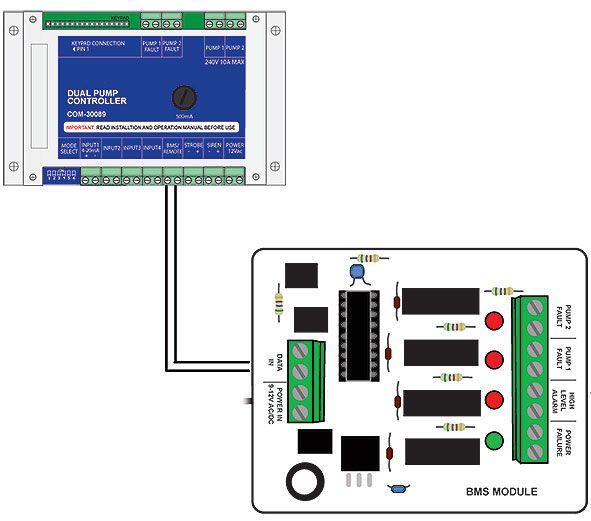

A unique feature of the RPC Pump Controllers are the coded Data Output, which can be utilized to provide a signal to a remote compatible device such as this BMS Module. The unique feature is that the coded data signal, derived from the Pump Controller’s microprocessor, is conveyed through a low voltage, 2 wire connection and then decoded by the BMS Module micro controller. Once the signal is decoded the micro controller provides four voltage free relay outputs for interfacing with a computer or other monitoring equipment. An additional feature of the BMS Module is the inclusion of indicator lights on the circuit board, which can be viewed through the clear enclosure lid, indicating relay ‘switched’ status. The module operates on 9 - 12V AC/DC and is supplied complete with power pack. Maximum distance between pump controller and BMS module is 150m. The BMS Module can also be incorporated inside the REEFE RPC1500 Single & RPC3000 Dual Pump Controllers enclosure for tidy installation.
Features & Benefits
Data Output
Indicator lights
Clear enclosure lid
Can be incorporated inside the enclosure of RPC1500 & RPC3000 Pump Control Panel
KIT INCLUDES:
BMS control card
Power pack
Polycarbonate enclosure with Clear lid 125mm W x 85mm H x 55mm D
WIRING:
2 core communication cable
**Please note the BMS Module is not compatible with the REEFE Compakt Controllers.
