| CODE | 18811 | MODEL | RHB1590.SS | |
| AMPS | 0.48 | P1 | 1.05 | |

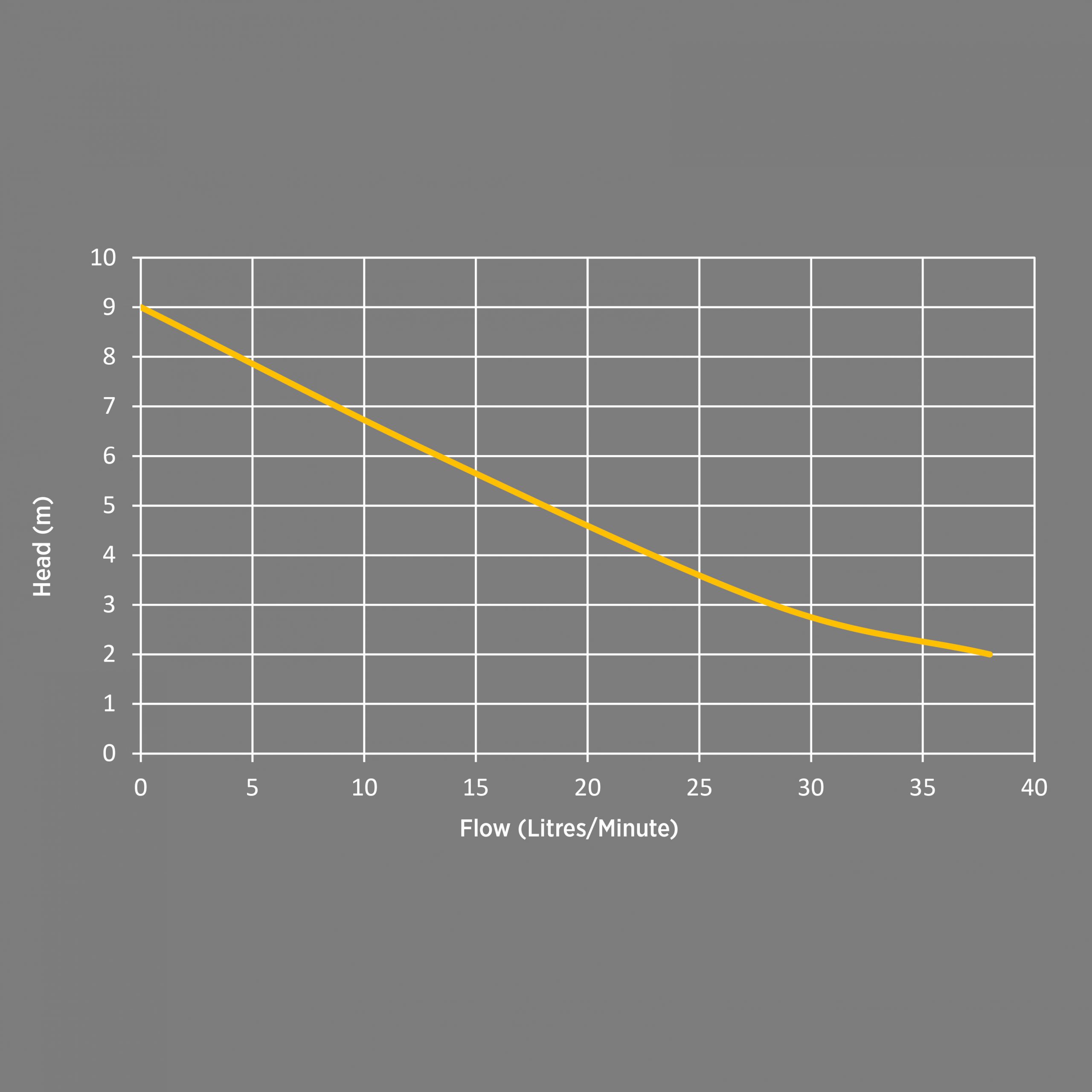

| MAX FLOW | 30 L/min | MAX HEAD | 9m | |
| LIQUID TEMP | +2°C – +60°C | MAINS PRESSURE | 500kPa** | |
| RHB 1590 SIZE BARE PUMP | 160mm | PORTS | 20MBSP | |

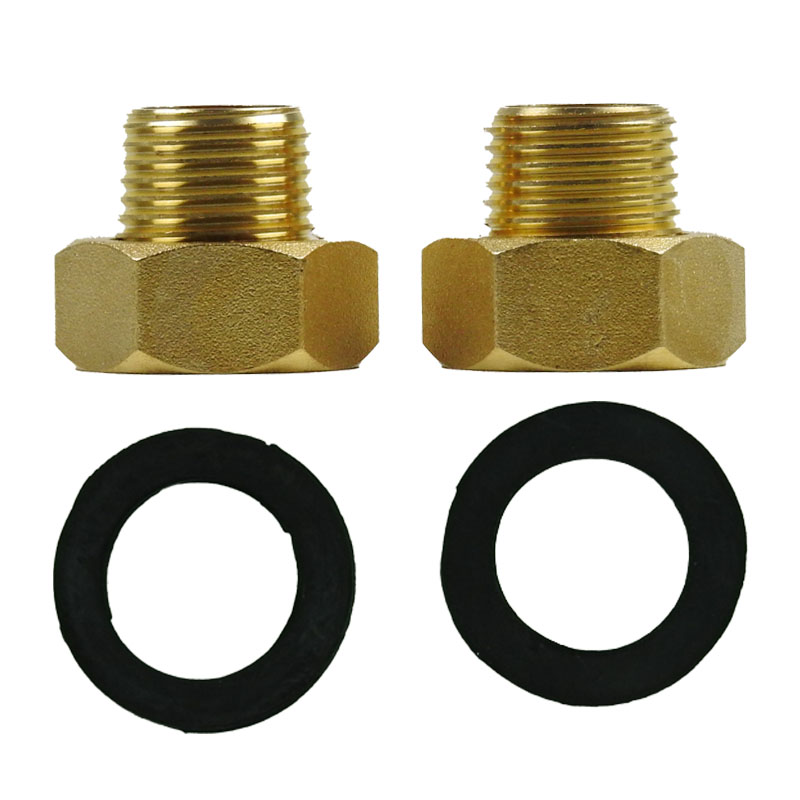

| RHB1590 SIZE WITH BARREL UNION | 215mm | UNION (MM) | 15MBSP | |
NOTE: **Max Mains Pressure 500kPa as per AS 3500.1-2018
In line pump casing for easy installation
Options for 20mm (3/4”) or 13mm (1/2”) BSP connections
Automatic or Manual Operation
In-built Flow Switch
Low Power Consumption
Reliable, Maintenance Free
Max Mains Pressure 500kPa as per AS 3500.1-2018
Liquid temperature 2˚C +90˚C
Ambient temperature up to 40˚C
Quiet operation
Certified to AS/NZS4020 for use with potable water
Stainless Steel Pump Casing
Ceramic Motor Shaft
PES Composite Impellers
Ceramic Bearings
EPDM Seals
Ingress Protection IP44
Insulation class F
Hot water boosting
Commercial or domestic hot water systems
Air-conditioning cooling systems
Solar hot water systems
Hotels & Motels
