Specifications
| CODE | 19238 | MODEL | RB90 |
| AMPS | 0.52 | P1 (W) | 68 |
| OUTLET AIRFLOW | 90 L/min | OPTIMUM BACK PRESSURE | 18 kPa |
| MAX PRESSURE | 41kPa/5.94 psi | SOUND LEVEL | 46 dBA |
| AMBIENT TEMPERATURE | -10C to +40C | OUTLET | 18mm |
| WEIGHT | 8.8kg | SIZE LxWxH (mm) | 262 x 216 x 228 |

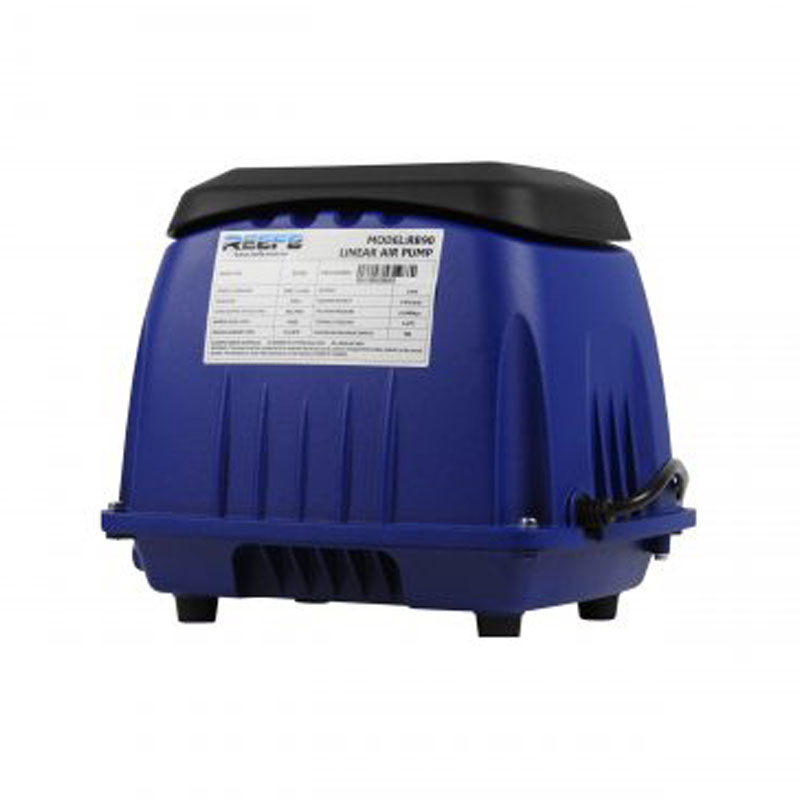

RB90 Linear Air Pump
The smart, unique mechanical design of the RB series pumps offer numerous benefits. Designed to provide a stable medium flow rate with extremely low energy-consumption rates - an environmentally friendly pump. RB series pumps are equipped with built-in protection devices which reduce maintenance costs, including safety switch and the thermostat to protect pumps from any unpredictable diaphragm breaks and/or an abnormal internal temperature.
Features & Benefits
High quality diaphragm
Inbuilt safety switch – shuts off in event of diaphragm failure; prevents damage to pump
Low energy consumption at 35% less power consumption than alternate models
Ultra quiet operation (RLB80T) up to 24% less noise (depending on back-pressure)
Quick heat dissipation
Long service life
High performance, low noise
Construction
Robust IPX4 cast aluminium construction
Oil-free design for safety
Inbuilt thermal overload (trips at 120°C – auto resets when cooled)
Operational temperatures -10°C to 40°C (ambient)
Applications
Waste water aeration
Aquaculture
Pond and aquarium aeration
